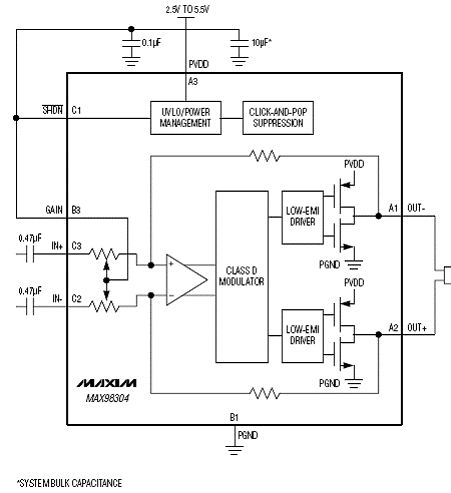

Maxim 公司的MAX98304是單聲道3.2W D類音頻放大器，提供AB類音頻性能和D類效率，提供五種引腳選擇的增益（0dB,3dB,6dB,9dB和12dB），3.7V的靜態(tài)電流0.95mA，超低噪音19μVRMS，PSRR為90dB，開關噪音抑制，熱和過流保護，低電流關斷模式。主要應用在筆記本和上網(wǎng)本電腦，手機，平板電腦，MP3播放器，手持音頻播放器，VoIP電話。本文介紹了MAX98304主要特性，功能方框圖，典型應用電路圖，MAX98304評估板主要特性，電路圖，材料清單和PCB元件布局圖。

The MAX98304 mono 3.2W Class D amplifier provides Class AB audio performance with Class D efficiency. This device offers five selectable gain settings (0dB, 3dB, 6dB, 9dB, and 12dB) set by a single gain-select input (GAIN).

Active emissions-limiting, edge-rate, and overshoot control circuitry greatly reduces EMI. A filterless spreadspectrum modulation scheme eliminates the need for output filtering found in traditional Class D devices. These features reduce application component count.
The IC’s 0.95mA at 3.7V (1.2mA at 5V) quiescent current extends battery life in portable applications.

The IC is available in a 9-bump (1.0mm x 1.0mm) WLP with 0.3mm pitch that is specified over the extended -40NC to +85NC temperature range.

MAX98304主要特性：

Low Quiescent Current: 0.95mA at 3.7V

Spread Spectrum and Active Emissions Limiting

Five Pin-Selectable Gains

19μVRMS Ultra-Low Noise

90dB PSRR

Click-and-Pop Suppression

Thermal and Overcurrent Protection

Low-Current Shutdown Mode

1.0mm x 1.0mm, 9-Bump WLP (0.3mm Pitch) Space-Saving Package

MAX98304應用：

Notebook and Netbook Computers

Cellular Phones

Tablets

MP3 Players

Portable Audio Players

VoIP Phones
