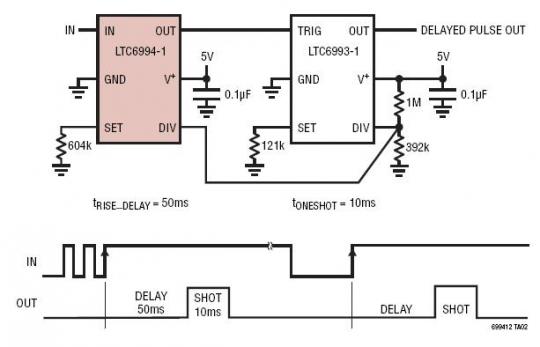

This circuit highlights the use of the LTC6994 Delay Block/ Debouncer and LTC6993 Monostable Pulse Generator in a delayed one-shot application. The LTC6994 is configured to provide a rise time delay of 50ms and the LTC6993 is configured to provide a 10ms one shot. The LTC6994 is a programmable delay block with a range of 1μs to 33.6 seconds. The LTC6993 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1μs to 33.6 seconds. Both devices are part of the TimerBlox? family of versatile silicon timing devices.
